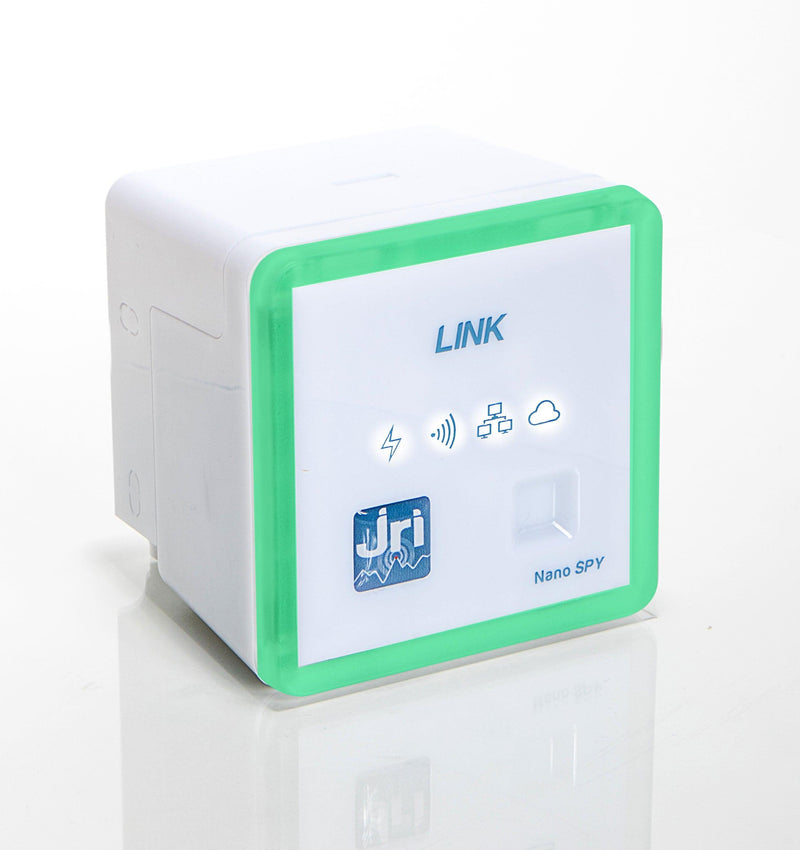

The Nano SPY LINK module collects the data measured by all nearby Nano SPY sensors. Data are transmitted to the My Sirius secure Cloud via a WiFi, Ethernet network or 3G/4G cellular network.
My Sirius account required. Select here to purchase My Sirius annual subscription.
| Interface | LED and status warning lights, touch-sensitive button On/Off, buzzer |
| Transmission Frequency with Nano SPY | 2,4 GHz Frequency - Modulation 802.11b and 802.11g |
| Maximum radiated power | Radio : 10 dBm (10 mW) / WiFi : +12 dBm |
| Radio transmission | Up to 40 m line of sight |
| Power supply | Either PoE 3m Ethernet cable (supplied) or regulated power supply 230 V CA – Output : 5 V CC - 1A 3m USB cable (supplied) |
| Power consumption | Average consumption : 0.5 W (WiFi) / 0.85W (Ethernet) Peak consumption : 2 W |
| Battery life | Full operation battery life : 6hrs in WiFi / 4hrs in Ethernet Charge time : 125hrs Backup battery type NIMH / Capacity : 730 mAh |
| Dimensions and weight | 78x78x63 mm - 200g (without adaptor) |
| Protection | IP20 – Indoor only |
| Operating conditions | 0°C to +40°C – 0 to 90% RH |
| Compliance | CE, EN 301 489 / EN 300 220 / EN 61010 / EN 301 511 |
| Supplied with | Power cable (depending on the device) |
